Introduction: The Geometry of Fluid Dynamics

At Exotic Metals LLP our Pipe Fittings are the primary components used to change direction, branch off, or change pipe diameters in large-scale industrial systems. Unlike forged fittings which are typically for small-bore pipes, buttweld fittings are designed for "butt-welding" directly to the pipe end. This creates a continuous, smooth-bore connection that minimizes pressure drops and prevents the turbulence or "dead zones" often found in threaded or socket-weld systems.

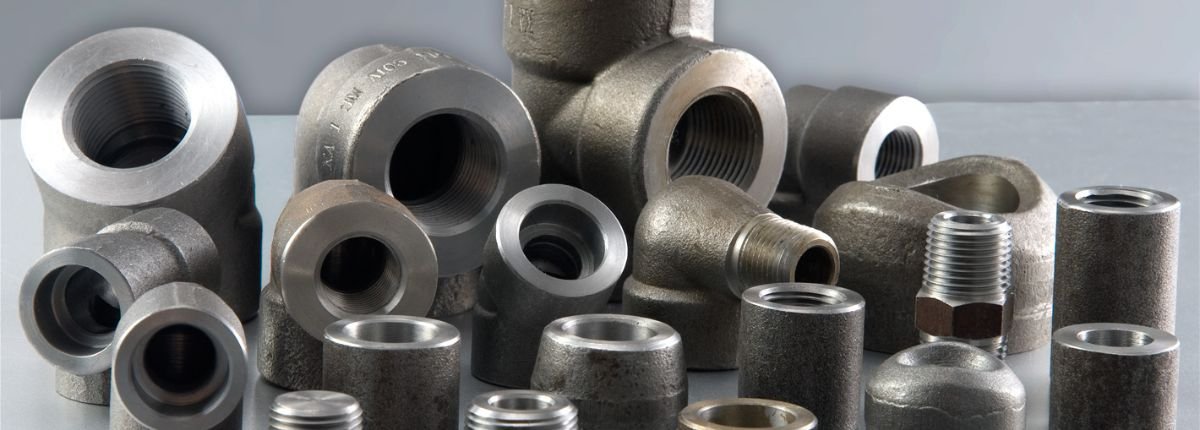

Pipe Fittings Manufacturer & Supplier in India

As a premier manufacturer and exporter in India, Exotic Metals LLP produces fittings that are essential for the structural integrity of a pipeline. By welding the fitting directly to the pipe, the joint becomes as strong as the pipe itself, offering a leak-proof and permanent solution for high-volume fluid transport. Whether you are managing a refinery, a desalination plant, or a high-pressure steam network, our buttweld fittings provide the precision-engineered angles and reductions required for optimal flow efficiency.

Technical Specification Table

Feature	Details
Size Range	1/2" (DN15) to 48" (DN1200)
Wall Thickness	Schedule 5S, 10S, 40S (STD), 80S (XS), 160, XXS
Standard Specifications	ASME B16.9, ASME B16.28, MSS-SP-43, EN 10253
Manufacturing	Seamless (Mandrel Process) or Welded (from Plate)
Ends	Beveled Ends (as per ASME B16.25)
Heat Treatment	Solution Annealing, Normalizing, or Tempering
Testing	100% X-Ray (for welded fittings), Ultrasonic, Hydrostatic

Core Types of Buttweld Fittings

Exotic Metals LLP specializes in the following key geometries to manage complex piping layouts:

Stub Ends Fittings

Processed at room temperature through a die, cold-drawn bars offer significantly higher tensile and yield strength. They feature a smooth, scale-free "Bright" finish and superior dimensional accuracy, making them.
Pipe Caps

These are hot-rolled bars that have had their outer skin removed through a turning process. This eliminates surface defects and ensures a uniform diameter, making them ideal as a precursor for high-quality precision grinding.

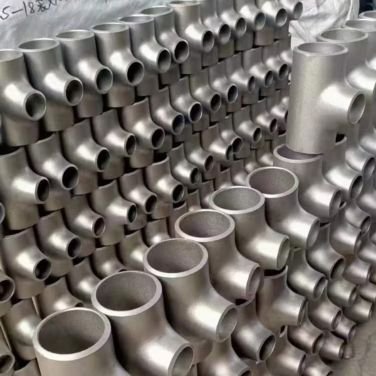

Equal & Reducing Tees

Used to create a 90-degree branch from the main run. Reducing tees allow the branch to have a smaller diameter than the main header, maintaining pressure balance across the system.

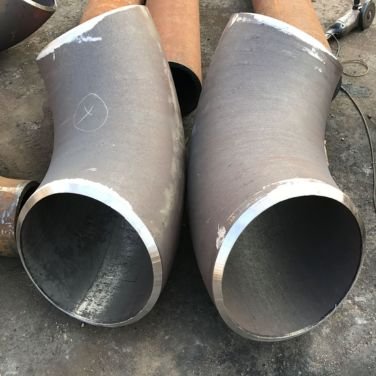

Pipe Elbows (90°, 45°, 180°)

Available in Long Radius (LR) and Short Radius (SR). LR elbows (where the radius is 1.5 times the diameter) are the industry standard for minimizing friction and wear.
Reducers (Concentric & Eccentric)

Concentric Reducers: Maintain the centerline of the pipe; used in vertical lines. Eccentric Reducers: Maintain a "flat side" (bottom or top); critical for horizontal suction lines to prevent air pockets (cavitation) in pumps.

Get A Quote Now!

Grade Range: From Structural to Superalloys

We maintain a massive inventory of fittings in materials designed to handle the most aggressive chemical and thermal environments:

Stainless Steel: WP304/L, WP316/L, WP317L, WP321, WP347, WP904L.
Nickel Alloys: Inconel 600, 625, Monel 400, Hastelloy C276, C22, Alloy 20.
Duplex & Super Duplex: ASTM A815 UNS S31803, S32205, S32750, S32760.
Alloy Steel: ASTM A234 WP5, WP9, WP11, WP22, WP91 (For high-heat steam).
Carbon Steel: ASTM A234 WPB, WPC, A420 WPL6 (Low Temperature).

Chemical Composition (%)

Our fittings are manufactured from high-purity pipes or plates to ensure grain integrity.

Grade	Carbon (C)	Chromium (Cr)	Nickel (Ni)	Molybdenum (Mo)	Others
ASTM A234 WPB	0.30 Max	0.40 Max	0.40 Max	0.15 Max	Mn: 0.29–1.06
WP 316L	0.03 Max	16.0–18.0	10.0–14.0	2.0–3.0	N: 0.10
WP S32205	0.03 Max	22.0–23.0	4.5–6.5	3.0–3.5	N: 0.14–0.2
Inconel 625	0.10 Max	20.0–23.0	58.0 Min	8.0–10.0	Nb+Ta: 3.15

Mechanical Properties

Tested to match or exceed the parent pipe standards.

Grade	Tensile (MPa)	Yield (MPa)	Elongation (%)	Hardness (HB)
ASTM A234 WPB	415 Min	240 Min	20%	197 Max
WP 316L	485 Min	170 Min	28%	187 Max
WP S32205	655 Min	450 Min	25%	290 Max
WPL6 (Low Temp)	415–585	240 Min	22%	197 Max

Quality Control & Testing

At Exotic Metals LLP, the integrity of the fitting is non-negotiable. We conduct:

Hydrostatic Testing: Ensuring the fitting can withstand internal pressures.
Radiography (X-Ray): For welded fittings (WPV/WPL), 100% of the weld seam is scanned to ensure zero porosity or inclusions.
Positive Material Identification (PMI): Verifying the alloy composition before dispatch.
Dimensional Inspection: Ensuring the bevel angle (typically 37.5°) and face-to-face dimensions are within ASME B16.9 tolerances.

Delivery & Packaging Information

We prioritize the protection of the beveled ends, as they are critical for onsite welding:

End Protection: All beveled ends are protected with plastic caps or wooden end-rings to prevent denting during transit.
Surface Finish: Carbon steel fittings are coated with black lacquer or varnish. Stainless and nickel alloy fittings are pickled and passivated for a clean finish.
Secure Logistics: Fittings are packed in reinforced wooden cases (ISPM-15 compliant) with internal bubble wrap or foam padding to prevent shifting.
Traceability: Every fitting is hard-stamped or laser-etched with the Heat Number, Size, Schedule, Grade Stub Ends.
Documentation: We provide Mill Test Certificates (MTC) as per EN 10204 3.1, along with Heat Treatment charts and NDT reports.

Frequently Asked Questions (FAQ)

What is the difference between "Seamless" and "Welded" buttweld fittings?

Seamless fittings are made from a seamless pipe section and have no weld seam, making them ideal for very high-pressure applications. Welded fittings are made from plate and feature a longitudinal weld; they are often used for larger diameters (above 24") where seamless pipe is unavailable.

Why are "Beveled Ends" important?

The bevel is a sloped edge that allows for full-penetration welding between the pipe and the fitting. Without a precise bevel angle, the weld joint may be weak or prone to leakage.

Can Exotic Metals LLP provide "180 Degree Return Bends"?

Yes. These are primarily used in heat exchanger coils and boiler tubes to reverse fluid flow in a compact space. We manufacture them to both LR and SR specifications.

Do you offer "Reducing Crosses"?

Absolutely. While less common than tees, we provide forged and buttweld crosses for complex four-way branching in industrial layouts.
