Introduction: The Foundation of Precision Engineering

At Exotic Metals LLP our Forged Fittingss represent the highest tier of strength and reliability for small-bore piping systems. Unlike "Buttweld Fittings," which are typically made from pipe or plate, forged fittings are manufactured from solid blocks of steel (billets) that are heated and hammered or pressed into shape. This forging process refines the internal grain structure of the metal, following the contours of the fitting. The result is a component with significantly higher impact strength and fatigue resistance, capable of handling extreme internal pressures and thermal surges.

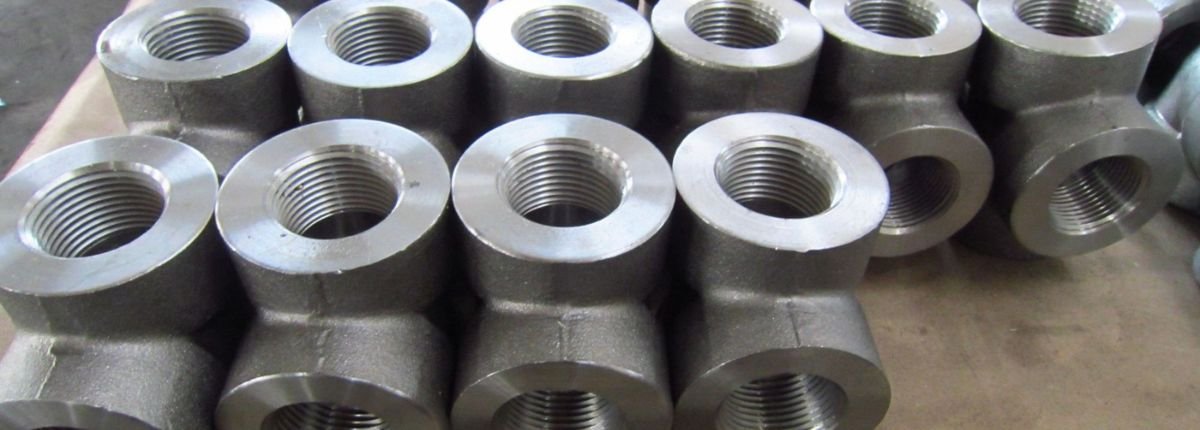

Forged Fittings Manufacturer & Supplier in India

As a leading manufacturer and exporter in India, Exotic Metals LLP specializes in forged fittings for critical service applications. Our fittings are designed to create leak-proof connections in high-pressure hydraulic lines, chemical injection systems, and steam distribution networks. Available in both Socket Weld and Threaded configurations, our forged range ensures that even the smallest connections in your pipeline are the strongest.

Technical Specification Table

Feature	Details
Size Range	1/8" (DN6) to 4" (DN100)
Pressure Ratings	2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Standard Specifications	ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, BS 3799
Connection Types	Socket Weld (SW), Threaded (NPT, BSPT, BSP)
Manufacturing	Hot Forged and CNC Machined
Surface Finish	Black (Phosphated), Pickled, Sandblasted, or Galvanized
Dimensional Limits	Wall thickness matches Schedule 80, 160, and XXS

Primary Types of Forged Fittings

Exotic Metals LLP offers a specialized range of geometries designed for precise flow direction and system branching:

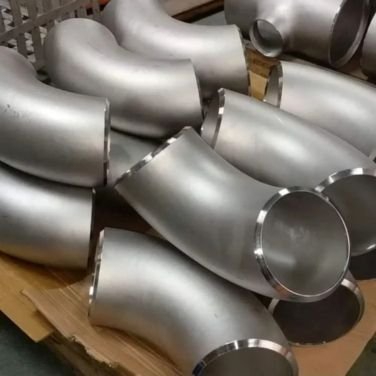

Forged Elbows (45° and 90°)

Used to change the direction of flow. Forged elbows feature a thicker wall at the back of the bend (crotch) to withstand the erosion and pressure localized at the turning point of the fluid.

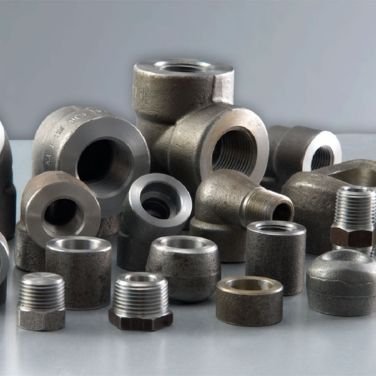

Forged Tees & Crosses

Used for branching a pipeline. Forged tees (Equal and Reducing) are designed to distribute flow into one or more auxiliary lines without compromising the structural integrity of the main run.
Forged Couplings & Half-Couplings

Full couplings are used to join two pipes of equal size, while half-couplings are often used for vessel or tank nozzles. They provide a high-pressure alternative to standard threaded couplings

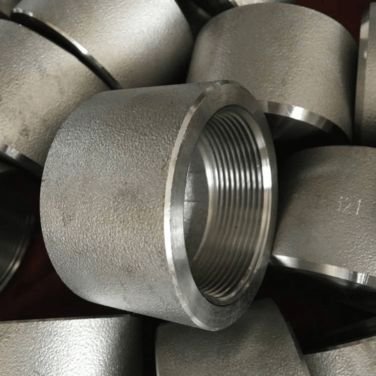

Forged Unions (ASME B16.11 / MSS-SP-83)

These are hot-rolled bars that have had their outer skin removed through a turning process. This eliminates surface defects and ensures a uniform diameter, making them ideal as a precursor for high-quality precision grinding.
Caps & Plugs

Used to seal the end of a small-bore pipe or a valve outlet. These are available in various styles, including Square Head, Hex Head, and Round Head plugs.

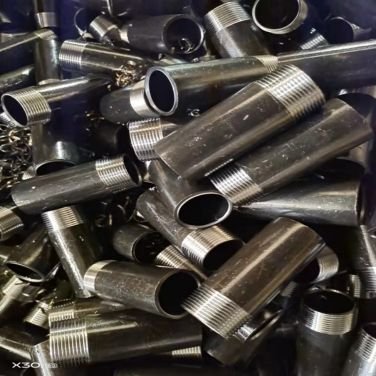

Swage Nipples & Bushings

Used for connecting pipes of different sizes. Swage nipples (Concentric and Eccentric) act as forged reducers for small-bore systems, providing a seamless transition between diameters.

Get A Quote Now!

Grade Range: From Carbon Steel to Exotic Alloys

We maintain a diverse inventory of forged materials to meet the chemical and thermal demands of global energy projects:

Stainless Steel: F304, F304L, F316, F316L, F316Ti, F317L, F321, F347, F904L.
Nickel Alloys: Inconel 600, 625, Monel 400, Hastelloy C276, C22, Alloy 20.
Duplex & Super Duplex: ASTM A182 F51, F53, F55, F60 (For high-chloride environments).
Alloy Steel: ASTM A182 F5, F9, F11, F22, F91 (For high-pressure steam service).
Carbon Steel: ASTM A105, A350 LF2 (Low-Temperature Service), A694.

Chemical Composition (%)

Our forged fittings are verified for chemical purity to ensure weldability and corrosion resistance.

Grade	Carbon (C)	Chromium (Cr)	Nickel (Ni)	Molybdenum (Mo)	Others
ASTM A105	0.35 Max	—	—	—	Mn: 0.60–1.05
SS F316L	0.03 Max	16.0–18.0	10.0–14.0	2.0–3.0	N: 0.10
F51 (Duplex)	0.03 Max	21.0–23.0	4.5–6.5	2.5–3.5	N: 0.14–0.2
Inconel 625	0.10 Max	20.0–23.0	58.0 Min	8.0–10.0	Nb+Ta: 3.15

Mechanical Properties

Tested to exceed the stresses found in high-pressure industrial cycles.

Grade	Tensile (MPa)	Yield (MPa)	Elongation (%)	Hardness (HB)
ASTM A105	485 Min	250 Min	22%	187 Max
SS F316L	485 Min	170 Min	30%	187 Max
F51 (Duplex)	620 Min	450 Min	25%	290 Max
A350 LF2	485–655	250 Min	22%	197 Max

Connection Comparison: Socket Weld vs. Threaded

At Exotic Metals LLP, we guide our clients in choosing the correct interface for their application:

Socket Weld (SW): The pipe is inserted into a recessed area of the fitting and fillet welded. This provides a permanent, leak-proof joint with excellent flow characteristics. It is preferred for systems conveying hazardous or flammable fluids.
Threaded (NPT/BSP): The fitting is screwed onto the pipe. This allows for easy assembly and disassembly in non-hazardous systems, such as water or air lines. We use high-precision CNC threading to ensure NPT (National Pipe Thread) compliance for a tight, pressure-resistant seal.

Delivery & Packaging Information

At Exotic Metals LLP, we recognize that forged fittings are precision components. Our packaging prevents thread damage and surface contamination:

Thread Protection: All threaded fittings are fitted with high-quality plastic caps to prevent thread marring and dust ingress.
Surface Coating: Carbon steel fittings are phosphated (black) or galvanized. Stainless and nickel alloy fittings are pickled and passivated.
Secure Boxing: Small fittings are packed in heavy-duty cardboard boxes, while larger orders are placed in heat-treated wooden crates (ISPM-15 compliant).
Traceability: Every fitting is deep-stamped with the Heat Number, Size, Pressure Rating, Grade.
Quality Documentation: We supply Mill Test Certificates (MTC) as per EN 10204 3.1, along with NDT reports (Magnetic Particle, Dye Penetrant) for high-pressure classes

Frequently Asked Questions (FAQ)

What is the difference between a 3000 lb and 6000 lb fitting?

This refers to the pressure-temperature rating (LBS/Class). A 6000 lb fitting has a much thicker wall and is designed for significantly higher internal pressures than a 3000 lb fitting.

Can I use forged fittings with standard Sch 40 pipe?

While physically possible, forged fittings (starting at 2000 LBS) are typically paired with heavier wall pipes (Sch 80 or higher) to match their pressure-bearing capacity.

Does Exotic Metals LLP offer "Olets" (Weldolets, Sockolets)?

Yes. We provide a full range of forged branch connections (MSS-SP-97), including Weldolets, Sockolets, and Threadolets, which are used to reinforce branch outlets on larger main pipes.

Why use ASTM A350 LF2 instead of A105?

A350 LF2 is a carbon steel grade specifically tested for "Low-Temperature" toughness. It is required for pipelines operating in cold climates or cryogenic environments where standard A105 might become brittle.
