Introduction: Precision in Every Millimeter

At Exotic Metals LLP our Metal Stripss are the essential choice for industries that require high-speed precision and minimal material waste. A metal strip is defined as a flat-rolled product that has been slit from a wider coil to a specific, narrow width. While sheets and coils are used for large-scale fabrication, strips are the primary raw material for small, intricate components produced via stamping, deep drawing, and continuous roll-forming.

Metal Strips Manufacturer & Supplier in India

Our strips are manufactured with a focus on three critical parameters: thickness uniformity, width precision, and edge quality. As a leading manufacturer and exporter in India, Exotic Metals LLP utilizes high-precision slitting lines that can achieve widths as narrow as 10mm with tolerances measured in microns. Whether you are manufacturing electrical connectors, precision springs, or automotive gaskets, our strips provide the consistent mechanical properties required for high-speed automated assembly lines.

Technical Specification Table

Feature	Details
Width Range	5mm to 600mm
Thickness Range	0.02mm to 6.0mm
Standard Specifications	ASTM A240, A666, EN 10088-2, AMS 5513
Inner Diameter (ID)	150mm, 300mm, 400mm, 508mm
Tolerances	Width: ± 0.05mm
Surface Finish	2B, BA (Bright Annealed), No. 4, Polished, or Matt
Temper	Soft Annealed, 1/4 Hard, 1/2 Hard, Full Hard, Spring Hard
Edge Condition	Slit Edge, Deburred Edge, Rounded (Full Radius) Edge

Primary Types of Metal Strips

Exotic Metals LLP offers a specialized range of strips tailored to the specific mechanical demands of precision engineering:

Precision Shim Strips

Produced at high temperatures, these bars are characterized by a scaled surface and are primarily used in structural applications where aesthetic finish is secondary. They provide excellent toughness and are ideal for further forging or welding into larger assemblies.

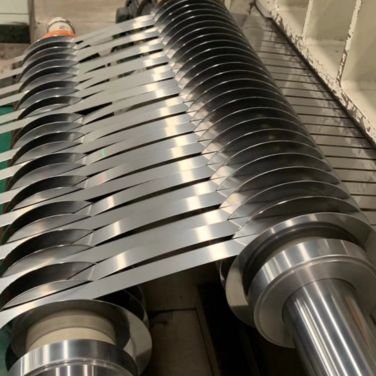

Spring Steel Strips

Engineered for high elasticity, our spring steel strips are used to manufacture clips, clamps, and flat springs. They are heat-treated to achieve various "Temper" levels, ensuring the material can flex repeatedly without permanent deformation or fatigue cracking.

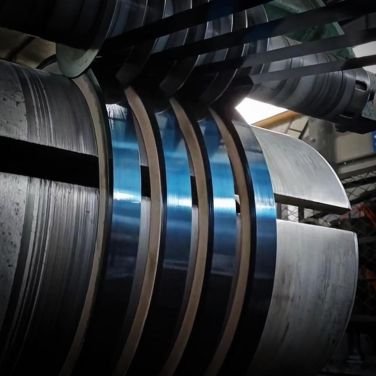

Deep Drawing Strips

Specifically annealed to maximize ductility, these strips are designed for components that undergo significant deformation during the stamping process, such as battery caps, cosmetic cases, and bulb bases. The material is processed to ensure it does not "ear" or crack during the draw.
Decorative & Architectural Strips

Available in Mirror (No. 8) or Brushed (No. 4) finishes, these strips are used as inlay materials in high-end furniture, elevator interiors, and wall paneling. They are supplied with a protective laser film to ensure the finish remains pristine until installation.

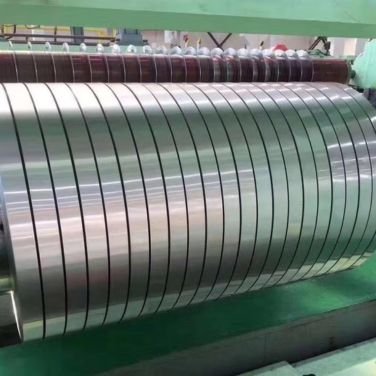

Corrosion-Resistant Industrial Strips

For the chemical and petrochemical sectors, we provide strips in "Exotic" alloys like Monel or Inconel. These are used for manufacturing gaskets, heat exchanger fins, and valve internal components that are exposed to aggressive corrosive agents.

Get A Quote Now!

Grade Range: Specialized Alloys for Narrow Applications

We stock and manufacture strips in a massive variety of alloys to meet every industrial challenge:

Stainless Steel: 201, 202, 301 (High Strength), 304, 304L, 316, 316L, 317L, 321, 410, 430.
Nickel Alloys: Inconel 600, 625, Monel 400, K500, Hastelloy C276, C22.
Duplex Stainless Steel: UNS S31803, S32205 (For high-strength marine clips).
Titanium: Grade 1, Grade 2 (For medical and aerospace components).
Copper & Brass Alloys: For electrical conductivity and decorative use.

Chemical Composition (%)

Our strips are verified via Spectrochemical analysis to ensure metallurgical consistency across the entire coil length.

Grade	Carbon (C)	Chromium (Cr)	Nickel (Ni)	Molybdenum (Mo)	Others
SS 301	0.15 Max	16.0 – 18.0	6.0 – 8.0	—	High Strength
SS 316L	0.03 Max	16.0 – 18.0	10.0 – 14.0	2.0 – 3.0	N: 0.10
Alloy 400	0.30 Max	—	63.0 Min	—	Cu: 28.0 – 34.0
Titanium Gr 2	0.08 Max	—	—	—	Fe: 0.30 Max

Mechanical Properties

The performance of a strip is defined by its hardness and tensile strength.

Temper	Tensile (MPa)	Yield (MPa)	Elongation (%)	Hardness (HV)
Soft Annealed	515–600	205 Min	40% Min	150–180
1/2 Hard	750–900	450 Min	15% Min	250–310
Full Hard	1000–1200	750 Min	3% Min	370–420
Spring Hard	1300 Min	1000 Min	1% Min	450+

Standard Weight Chart (Theoretical)

Formula: $\text{Width (mm)} \times \text{Thickness (mm)} \times 0.008 = \text{Weight per meter (kg)}$.

Width (mm)	Thickness (mm)	Weight (kg/m)	Total Length (per 100kg Coil)
10 mm	0.10 mm	0.008 kg	12,500 Meters
25 mm	0.50 mm	0.100 kg	1,000 Meters
50 mm	1.00 mm	0.400 kg	250 Meters
100 mm	2.00 mm	1.600 kg	62.5 Meters
200 mm	3.00 mm	4.800 kg	20.8 Meters

Delivery & Packaging Information

At Exotic Metals LLP, we understand that thin strips are susceptible to edge damage and moisture. Our packaging is designed for maximum protection:

Internal Spooling: Narrow strips are wound on plastic or steel cores to prevent the coil from collapsing.
Surface Guard: For BA and Polished finishes, we provide interleaved paper or PE film to prevent metal-to-metal scratching during unwinding.
Rust Prevention: Strips are wrapped in VCI (Vapor Corrosion Inhibitor) paper and sealed in moisture-proof HDPE plastic.
Secure Logistics: Coils are packed in "Eye-to-Sky" (flat) position on wooden pallets, secured with nylon or steel straps to prevent shifting.
Traceability: Every strip coil is labeled with a Heat Number, Width, Thickness, and Grade. We provide Mill Test Certificates (MTC) as per EN 10204 3.1.

Frequently Asked Questions (FAQ)

What is the minimum width Exotic Metals LLP can slit?

We can provide precision slit strips as narrow as 5mm, depending on the thickness of the material.

Why is "Edge Condition" important for strips?

A standard slit edge can be sharp. For applications where the strip is handled manually or used in visible areas, we offer "Deburred" or "Rounded" edges to ensure safety and a premium look.

Can I get strips in continuous lengths?

Yes. We can "Oscillate" or "Traverse" wind the strip. Instead of a standard pancake coil, the strip is wound back and forth like a spool of thread, allowing for much longer continuous lengths for high-speed stamping.

Do you offer "Spring Hard" stainless steel?

Absolutely. We specialize in Grade 301 Spring Hard strips, which provide the highest fatigue resistance and tensile strength for industrial spring applications.
