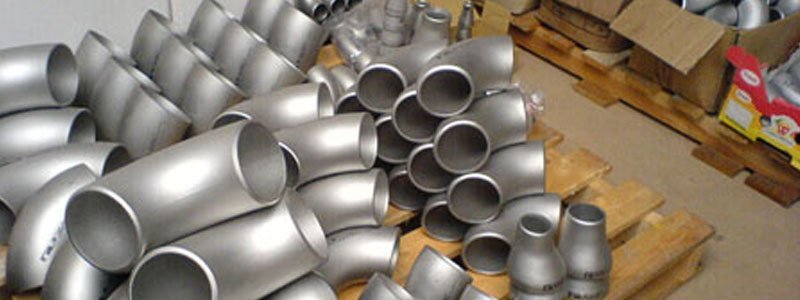

Pipe Fittings Manufacturers Supplier, & Exporter in India – Trimac Piping Solutions
Trimac Piping Solutions is one of the largest Pipe Fittings Manufacturer, Suppliers & Exporters in India. We offer our customers reliable, cost-effective, and high-quality superior Stainless Steel Pipe Fittings products according to international specification ASTM and dimensional specification ANSI/ASME. Extensive capability range, exceptional quality, and unrivaled customer service make Trimac Piping Solutions Pipe Fittings the premiere value solution for all of your Buttweld Fittings needs.
Trimac Piping Solutions is one of the premier Quality Stainless Steel Pipe Fittings exporter in India. Trimac Piping Solutions has been a trusted vendor as a Steel Pipe Fittings distributor & dealer in your country. We take pride on our rapid and accurate shipping in your country.
Top Quality Pipe Fittings Manufacturer, ANSI B16.9 Fittings, ANSI B16.28 Buttweld Fittings Manufacturer, ASTM A234 WPB Pipe Fittings, Carbon Steel Pipe Fittings, ANSI B16.28 Buttweld Fittings Supplier in Mumbai, India.
We supply Industrial Pipe Fittings in material and grades namely Carbon Steel Buttweld Fittings, Stainless Steel Pipe Fittings, Low-Temperature Carbon Steel Pipe Fittings, High Yield Carbon Steel Pipe Fittings. We do provide all types of Pipe Fittings such as Stainless Steel Pipe Fitting, Carbon Steel Pipe Fitting, like Buttweld Fittings Elbow, Pipe Fitting Tee, Buttweld Fittings Reducer, Pipe Fitting Cross, Pipe Fitting End Caps, Buttweld Fitting Nipple, Bend, Outlet Fittings, Lap Joint Fittings and so on.
All the Stainless Steel and Carbon Steel Buttweld Fittings are used in various industries and its usages such as Mechanical Industry, Chemical Industry, Petrochemical Industry, etc. Each Stainless Steel Buttweld Fittings has different ability to form different application as per the design requirements and application. Some other types of Buttweld Fittings are used in different applications especially for specified purposes.
The top Carbon Steel and Stainless Steel Pipe Fittings manufacturers in India are listed below. Please contact Trimac Piping Solutions for rapid deliveries and factory rates on Buttweld Fittings. We would provide you the best pricing, even lower than direct manufacturer costs, due to our vast stock of materials and daily sales volume of over 5 tones.
Pipe Fittings Specifications, Size, Standards
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Thickness | SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS, Custom Thickness. |
| Dimension | B16.9, BS 4504, EN-1092, |
| Specialize | Long Bend with Radius – R = 1D, 1.5D, 2D, 3D, 5D, 6D, 8D, 10D or custom Pigabble Bend & As per your drawing |
| Value Added Service | Polish (Electro & Commercial) Heat Treatment Annealed & Pickled, Sand Blasting Machining Etc. |
| Grades | |
| Stainless Steel | ASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L |
| Super Duplex/Duplex Steel | ASTM / ASME SA 790 UNS NO S31803 , S32205 , S32550 , S32750 , S32760. |
| Carbon Steel | IS: 2062, ASTM SA105, ASTM SA106, ASTM A350 LF2, LF3 |
| Alloys Steel | ASTM / ASME SA182 F5, F9, F11, F12, F22, F91 |
How Many Types of Pipe Fittings
Pipe fittings are essential components in piping systems used to connect pipes, valves, and other equipment. There are various types of pipe fittings available, including elbows, tees, reducers, couplings, flanges, valves, and unions. Elbows are used to change the direction of the flow, while tees are used to combine or split the flow. Reducers are used to connect pipes of different diameters, and couplings are used to connect pipes of the same diameter. Flanges are used to connect pipes to other equipment, while valves control the flow of fluid or gas. Unions are used to connect and disconnect pipes easily. The selection of the appropriate pipe fitting depends on the specific application and operating conditions.
Pipe Fittings Elbow
Pipe Fittings Nipple
Pipe Fittings Tee
Pipe Fittings Reducer
Pipe Fittings Cross
Pipe Fittings Bend
Pipe Fittings End Caps
Pipe Fittings Lap Joint/Stub End
About Stainless Steel Pipe Fittings
Being in the Stainless Steel Pipe Fittings business for more than a decade Trimac Piping Solutions evolving ourselves with time, we have secured a special place for ourselves within the industries and our clients in the domestic. The offered range of Stainless Steel Buttweld Fittings Elbow products finds various applications in a diverse range of industries including Pharmaceuticals, Chemicals, Water Processing, Oil & Gas, Dairy, Sugar & Food Processing, and many other industries.
Why choose Stainless Steel Pipe Fittings
Stainless steel pipe fittings are an excellent choice for piping systems that require corrosion resistance, hygiene, and durability. Stainless steel is a type of steel that contains chromium, which reacts with oxygen to form a thin, protective layer on the surface of the steel, known as the passive layer. This layer protects the steel from corrosion caused by exposure to air, water, and other corrosive elements. Stainless steel pipe fittings are also resistant to high temperatures, making them suitable for use in high-temperature applications. Furthermore, stainless steel is non-reactive and non-porous, making it easy to clean and maintain hygiene in food and beverage processing industries. Overall, stainless steel pipe fittings offer a reliable and long-lasting solution for piping systems that require corrosion resistance, hygiene, and durability.
Pipe Fittings Dimension Chart Pdf
Pipe Fittings Dimension, ASME A403 Buttweld Fittings Dimension Chart, Pipe Fittings Dimension Chart Table, Dimension Chart of Pipe Fittings Manufacturer.
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | ASME B16.9 Elbows and Tees | ASME B16.9 180 Deg Return Bends | ASME B16.9 180 Deg Return Bends | ASME B16.9 180 Deg Return Bends | ASME B16.9 Reducers | ASME B16.9 Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) |
Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 |
0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 |
0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 |
0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
ANSI B16.9 Pipe Fittings Tolerance Pdf
Pipe Fittings Dimension, ASME B16.9 Pipe Fittings Weight Chart, Pipe Fittings Weight Chart Table, Weight Chart of Pipe Fittings Manufacturers.
| Pipe Fittings ASME B16.9 Tolerance (Elbow, Cap, Tee, Reducer) | 90 Deg. & 45 Deg. Elbow and Tee |
Pipe Reducer & Lap Joint Stub End |
Pipe Cap | |||
| Pipe Fitting Dimension (NPS) | Outside Diameter at Bevel |
Inside Diameter at End |
wall thickness T | Center-to-End Dimension A ,C ,B |
Over-all Length H |
Over-all Length F |
| 1/2 to 2-1/2 | +0.06 | Not less than 87.5% of nominal thickness |
+/- 0.06 | +/- 0.06 | +/- 0.12 | |
| -0.03 | ||||||
| 3 to 3-1/2 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 4 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 5 to 8 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.25 | |
| 10 to 18 | +0.16 | +/- 0.12 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.12 | ||||||
| 20 to 24 | +0.25 | +/- 0.19 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.19 | ||||||
| 26 to 30 | +0.25 | +/- 0.19 | +/- 0.12 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
| 32 to 48 | +0.25 | +/- 0.19 | +/- 0.19 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
Pipe Fittings Price List in India
| Sl No. | Description | Size | Aprox. Wt/Unit | FOB INR |
CIF INR |
FOB USD |
CIF USD |
FOB STGP |
CIF STGP |
FOB EURO$ |
CIF EURO$ |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
1
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
15mm
|
0.05
|
25.30
|
27.50
|
0.383
|
0.417
|
0.258
|
0.281
|
0.460
|
0.500
|
|
2
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
20mm
|
0.05
|
27.60
|
30.00
|
0.418
|
0.455
|
0.282
|
0.306
|
0.502
|
0.545
|
|
3
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
25mm
|
0.16
|
36.80
|
40.00
|
0.558
|
0.606
|
0.376
|
0.408
|
0.669
|
0.727
|
|
4
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
32mm
|
0.27
|
52.90
|
57.50
|
0.802
|
0.871
|
0.540
|
0.587
|
0.962
|
1.045
|
|
5
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
40mm
|
0.40
|
66.70
|
72.50
|
1.011
|
1.098
|
0.681
|
0.740
|
1.213
|
1.318
|
|
6
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
50mm
|
0.71
|
115.00
|
125.00
|
1.742
|
1.894
|
1.173
|
1.276
|
2.091
|
2.273
|
|
7
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
65mm
|
1.37
|
248.40
|
270.00
|
3.764
|
4.091
|
2.535
|
2.755
|
4.516
|
4.909
|
|
8
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
80MM
|
2.18
|
318.55
|
346.25
|
4.827
|
5.246
|
3.251
|
3.533
|
5.792
|
6.295
|
|
9
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
100mm
|
4.15
|
637.10
|
692.50
|
9.653
|
10.492
|
6.501
|
7.066
|
11.584
|
12.591
|
|
10
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
125mm
|
7.00
|
970.60
|
1055.00
|
14.706
|
15.985
|
9.904
|
10.765
|
17.647
|
19.182
|
|
11
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
150mm
|
10.92
|
1397.25
|
1518.75
|
21.170
|
23.011
|
14.258
|
15.497
|
25.405
|
27.614
|
|
12
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
200mm
|
21.95
|
2949.75
|
3206.25
|
44.693
|
48.580
|
30.099
|
32.717
|
53.632
|
58.295
|
|
13
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
250mm
|
38.85
|
4812.75
|
5231.25
|
72.920
|
79.261
|
49.110
|
53.380
|
87.505
|
95.114
|
|
14
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
300mm
|
63.07
|
7452.00
|
8100.00
|
112.909
|
122.727
|
76.041
|
82.653
|
135.491
|
147.273
|
|
15
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
350mm
|
87.21
|
11178.00
|
12150.00
|
169.364
|
184.091
|
114.061
|
123.980
|
203.236
|
220.909
|
|
16
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
400mm
|
126.21
|
16301.25
|
17718.75
|
246.989
|
268.466
|
166.339
|
180.804
|
296.386
|
322.159
|
|
17
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
450mm
|
185.02
|
23287.50
|
25312.50
|
352.841
|
383.523
|
237.628
|
258.291
|
423.409
|
460.227
|
|
18
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
500mm
|
241.17
|
36483.75
|
39656.25
|
552.784
|
600.852
|
372.283
|
404.656
|
663.341
|
721.023
|
|
19
|
ASTM A234 GR. WPB B16.9 BW R=1.5D, SCH-40
|
600mm
|
403.31
|
58995.00
|
64125.00
|
893.864
|
971.591
|
601.990
|
654.337
|
1072.636
|
1165.909
|
* The prices listed above are for reference only and are subject to change based on changes in the cost of raw materials.
Client Project For Pipe Fittings Manufacturer in India
Our Stainless Steel Pipe Fittings are impeccable in quality and that is why we loved widely by our large clientele. SS Pipe Fittings produced by Trimac Piping Solutions are used in various different projects worldwide. We have clients with regular demand for Cross Fittings in 5 different countries and we export Pipe Fittings to additional 40+ countries.
| Product supplied | City |
|---|---|
| Pipe Fittings for Automobile Industry | Mumbai, Maharashtra |
| Stainless Steel Buttweld Fittings Tee supply | Hosdurg, Kerala |
| Pipe Fittings Elbow supply for Oil and Gas Industry | Bangalore, Karnataka |
| Buttweld Pipe Fittings for the Aerospace industry | Surat, Gujarat |
Additional Information: Pipe Fittings Packaging & Delivery Details
- SS Pipe Fittings Payment Modes: LC (Letter of Credit), TT (Telegraphic Transfer or Wire Transfer), Cheque, and others.
- SS Pipe Fittings Packaging: Pipe Fittings are packaged with caution and safety so they reach our client’s as good as he would expect. Packaging Charges Extra.
- Stainless Steel Pipe Fittings Port of Dispatch: Mumbai or Kalamboli ports in the Maharashtra state of India.
- Stainless Steel Pipe Fittings Tax: 18% GST.
Pipe Fittings Applications and Uses
- Stainless Steel Buttweld Fittings used in Petrochemical Industries
- Pipe Fittings used in Refineries Industries
- Pipe Fittings used in Heat Exchangers
- Pipe Fittings used in Sugar Industries
- Stainless Steel Pipe Fittings used in Chemical Industries
- Pipe Fittings Stub Ends used in Oil and Gas Industries
- Pipe Fittings used in Pharmaceuticals
- Pipe Fittings used in Power Plants
Other Product Ready Stock in India
Related Types of Pipe Fittings
Pipe Fittings Manufacturers & Supplier in India – Trimac Piping Solutions
Trimac Piping Solutions is a highly acclaimed manufacturer, supplier, Stockists, and exporter of various types of Stainless Steel Pipe Fittings in Mumbai, Pune, Delhi, & major cities in India, built from high-quality raw materials and grades. We also export and supply customized Stainless Steel Buttweld Fittings on customer demands acquire from various countries worldwide.
| Domestic Cities we supply : | |||||
|---|---|---|---|---|---|
| Bengaluru | Mumbai | Chennai | Hyderabad | Kolkata | Pune |
| New Delhi | Ahmedabad | Jaipur | Surat | Salem | Gandhinagar |
| Bhiwandi | Tiruppur | Sivakasi | Jamnagar | Thiruvananthapuram | Rajahmundry |
| Bhubaneswar | Vijaywada | Firozabad | Bokaro Steel City | Rajkot | Bharuch |
| Panna | Raipur | Cochin | Ludhiana | Panipat | Durgapur |
| Peenya | Pimpri-Chinchwad | Channapatna | Kharagpur | Nashik | Bareilly |
| Varanasi | Haldia | Rourkela | Bangalore | Moradabad | Indore |
| Visakhapatnam | Trivandrum | Pithampur | Dibrugarh | Angul | Gwalior |
| Coimbatore | Kannur | Nagpur | Vadodara | Rudrapur | Noida |
| Agra | Bhagalpur | Jamshedpur | Bhilai | Lucknow | Kanpur |
| Thane | Bhopal | Sri City | Bareilly | Hosdurg | Pithampur |
Pipe Fittings Manufacturer & Exporter in India – Trimac Piping Solutions
Yearly more than 10 tons of Buttweld Pipe fittings are exported from India, out of which Trimac Piping Solutions exports 35% of the Stainless Steel Buttweld Fitting. We have a huge client base in Germany, UAE, Italy, United Kingdom, United States, Australia, Saudi Arabia, Iran. We are regularly exporting Stainless Steel Buttweld Fitting to more countries and connecting with new customers in different parts of the world.
| Countries we supply and export worldwide: | ||||
|---|---|---|---|---|
| Saudi Arabia | Oman | Kuwait | Netherlands | Iran |
| Bahrain | Qatar | UAE | Africa | China |
| Nigeria | Mexico | Canada | Venezuela | United Kingdom |
| United States | South Africa | Malaysia | Bangladesh | Turkey |
| Singapore | Sri Lanka | Australia | Brazil | Germany |
| France | Italy | South Korea | Poland | Belgium |
