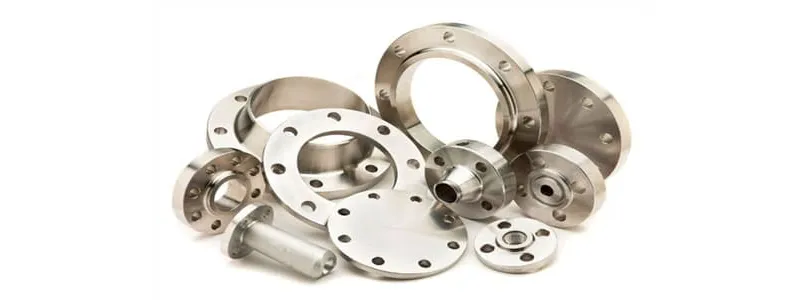

Stainless Steel 304 304L Flanges Exporter in Saudi Arabia are essential components used in various piping systems, crafted from high-quality stainless steel grade 304 and 304L. These flanges are manufactured and exported by Ferro Fittings and Alloys, based in Mumbai, India. Known for their excellent corrosion resistance and durability, our flanges are ideal for a wide range of industrial applications, ensuring reliable performance in demanding environments.
Our stainless steel flanges adhere to critical industry standards, including ASTM, ASME, EN, and DIN. We offer these flanges in sizes ranging from DN 10 to DN 600 (NPS ½ to NPS 24), with pressure ratings from Class 150 to Class 2500 (PN10 to PN400). They can withstand temperature ranges from -196°C to 800°C, and are compatible with various end connections such as slip-on, welded, and threaded types. This extensive range underscores our commitment to meeting diverse specifications and customer needs.
Our stainless steel flanges find applications across multiple industries, including Oil & Gas, Petrochemical, Chemical, Power Generation, and Pharmaceutical sectors. They are also widely used in Shipbuilding and Water Treatment projects. With a strong presence in markets such as the UAE, Saudi Arabia, and Qatar, we support various project types, including Engineering, Procurement, and Construction (EPC) and Lump Sum Turnkey (LSTK) contracts, as well as maintenance activities across the globe.
Quality is paramount at Ferro Fittings, as evidenced by our ISO 9001:2015 certification and the availability of EN 10204 3.1 / 3.2 Mill Test Certificates. Our in-house testing capabilities include Positive Material Identification (PMI), Hydrostatic Testing, Hardness Testing, Impact (Charpy) Testing, Ultrasonic Testing (UT), and Liquid Penetrant Testing (LPT). We also ensure compliance with NACE MR 0175 / ISO 15156 for applications in sour service. Request a free MTC sample or get a quick quote via WhatsApp.
Choose Ferro Fittings for your stainless steel flange needs, where we offer a competitive lead time of just 2–4 weeks, no minimum order quantity, and extensive stock availability. Our shipping terms include FOB Mumbai, CIF, and CFR, accompanied by full export documentation to ensure a smooth transaction. For inquiries, contact us at +91-86550-39959, reach us on WhatsApp at wa.me/+918655039959, or email us at export@ferrofittings.com.
Trusted manufacturer & exporter of Flanges, Pipe Fittings and Valves in 30+ countries.
1–4 weeks depending on size, grade & quantity.
Urgent and bulk orders handled efficiently.FOB, CIF, CFR, EXW, DDP (Incoterms 2020).
Door-to-port and door-to-door delivery available.Sea Freight / Air Cargo / Express Courier.
Complete export documentation & tracking support.Trusted by EPC contractors, procurement teams, and global industrial buyers across multiple countries for certified supply and reliable delivery.
Direct supply with bulk stock availability to reduce your overall project cost.
ISO 9001, ISO 14001, ISO 45001, PED certified with full test certificates.
Safe, sea-worthy packaging ensuring damage-free international delivery.
Selecting the right partner for Stainless Steel 304 304L Flanges Exporter in Saudi Arabia is critical for ensuring product quality, long-term performance, and successful project execution. As a trusted manufacturer and exporter, Ferro Fittings and Alloys delivers high-quality materials meeting international standards and global industry requirements.
Understand the key differences between local suppliers, trading companies, and professional manufacturers & exporters like Ferro Fittings and Alloys.
| Evaluation Factor | Small Local Suppliers | Trading Companies | Ferro Fittings and Alloys |
|---|---|---|---|
| Manufacturing Control | Limited or outsourced production | Dependent on third-party mills | Direct manufacturing with strict quality control |
| Standards Compliance | Basic or local standards | Varies depending on supplier | ASTM, ASME, ANSI, EN, ISO certified products |
| Inspection & Certification | Limited documentation | Inconsistent certification | MTC, TPI, and full export documentation provided |
| Export Capability | Mostly domestic supply | Moderate export handling | Global exports with complete logistics support |
| Delivery Reliability | Uncertain timelines | Depends on sourcing chain | Consistent lead times with ready stock availability |
| Project Risk Level | High | Medium | Low |
We manufacture and supply high-quality ASTM A182 F304 and F304L stainless steel flanges for piping, process equipment, pressure vessels, petrochemical plants, oil & gas facilities, chemical processing plants, food processing, pharmaceutical applications, water treatment systems and general industrial piping.
ASTM A182 F304 and F304L are forged austenitic stainless steel grades based on the widely used 18% chromium / 8% nickel stainless steel family. F304L is the low-carbon version of F304 and is particularly useful where welding and resistance to sensitization/intergranular corrosion are important considerations.
Our F304/F304L flanges can be supplied in various flange types, pressure classes, face configurations, sizes, bore schedules and international standards, subject to the applicable specification and customer requirements.
| Specification | SS 304 / SS 304L Flanges |
|---|---|
| Material | Austenitic Stainless Steel |
| Grades | SS 304, SS 304L |
| ASTM Material Grades | ASTM A182 F304, ASTM A182 F304L |
| ASME Material Grades | ASME SA182 F304, ASME SA182 F304L |
| UNS | S30400 / S30403 |
| EN Material Grades | EN 1.4301 / EN 1.4307 |
| EN Designations | X5CrNi18-10 / X2CrNi18-9 |
| JIS Grades | SUS304 / SUS304L |
| Flange Standards | ASME B16.5, ASME B16.47, EN 1092-1, JIS B2220 and other applicable national/international standards |
| Specialized Flange Standards | ASME B16.36 for Orifice Flanges; ASME B16.48 for Line Blanks |
| Size Range | NPS ½" to 24" (DN15–DN600) as per ASME B16.5; NPS 26" to 60" (DN650–DN1500) as per ASME B16.47 |
| Pressure Rating | ASME Class 150, 300, 400, 600, 900, 1500 and 2500, subject to applicable size limitations |
| PN Rating | PN ratings as per applicable EN/DIN standard, such as PN6, PN10, PN16, PN25, PN40, PN63, PN100, PN160, etc., where applicable |
| Flange Types | Weld Neck, Slip-On, Blind, Socket Weld, Threaded/Screwed, Lap Joint, Long Weld Neck, Orifice and Reducing Flanges |
| Specialty Products | Spectacle Blinds, Paddle Blinds, Paddle Spacers, Line Blanks, Nipo Flanges, Weldo Flanges and Custom Flanges, as applicable |
| Facing Types | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Male & Female, Tongue & Groove, as applicable |
| Bore / Pipe Schedule | Standard and custom bore sizes to suit specified pipe schedules |
| Manufacturing | Forged / Hot Forged and Machined, as applicable |
| Surface Finish | Machined flange face finish as specified by the applicable standard; special polished finishes available on request |
| Heat Treatment | Solution Heat Treatment as required by the applicable material specification |
| Testing & Inspection | Chemical Analysis, Mechanical Testing, Dimensional Inspection, Visual Inspection, PMI, Hardness and NDT as specified |
| NDT | PT, UT and other NDT examinations as required by purchase/project specification |
| Certification | EN 10204 3.1 / 3.2 MTC, Certificate of Conformance and Third-Party Inspection, as required |
| Applications | Oil & Gas, Chemical, Petrochemical, Pharmaceutical, Food Processing, Water Treatment, Power, Marine and General Process Industries |
| Chemical Element | ASTM A182 F304 | ASTM A182 F304L |
|---|---|---|
| Carbon (C) | 0.080% max. | 0.030% max. |
| Manganese (Mn) | 2.00% max. | 2.00% max. |
| Silicon (Si) | 1.00% max. | 1.00% max. |
| Phosphorus (P) | 0.045% max. | 0.045% max. |
| Sulfur (S) | 0.030% max. | 0.030% max. |
| Chromium (Cr) | 18.0–20.0% | 18.0–20.0% |
| Nickel (Ni) | 8.0–11.0% | 8.0–13.0% |
| Nitrogen (N) | 0.10% max. | 0.10% max. |
| Molybdenum (Mo) | Not specified | Not specified |
These limits are commonly tabulated for A182 F304/F304L; the applicable edition of ASTM A182/A182M and the material certificate should govern the actual supplied product.
The most important difference is carbon:
That lower carbon level is the key reason F304L is commonly preferred for welded fabrication, because it reduces the risk of chromium-carbide precipitation/sensitization in the heat-affected zone.
| Mechanical Property | F304 | F304L |
|---|---|---|
| Tensile Strength, min. | 515 MPa (75 ksi) | 485 MPa (70 ksi) |
| Yield Strength, min. | 205 MPa (30 ksi) | 170 MPa (25 ksi) |
| Elongation in 50 mm / 2 in. or 4D, min. | 30% | 30% |
| Reduction of Area, min. | 50% | 50% |
| Hardness | No specific maximum in the commonly cited A182 table | No specific maximum in the commonly cited A182 table |
| Country / Standard | SS304 Equivalent | SS304L Equivalent |
|---|---|---|
| Common / International | Stainless Steel 304 / SS304 | Stainless Steel 304L / SS304L |
| AISI | AISI 304 | AISI 304L |
| UNS | S30400 | S30403 |
| ASTM forged products | ASTM A182 F304 | ASTM A182 F304L |
| ASME forged products | ASME SA182 F304 | ASME SA182 F304L |
| EN | 1.4301 | 1.4307 |
| EN designation | X5CrNi18-10 | X2CrNi18-9 |
| DIN | DIN 1.4301 | DIN 1.4307 |
| Werkstoff No. | Werkstoff 1.4301 | Werkstoff 1.4307 |
| JIS Japan | SUS304 | SUS304L |
| GB China | 06Cr19Ni10 | 022Cr19Ni10 |
| Older Chinese designation | 0Cr18Ni9 | 00Cr19Ni10 |
| KS Korea | STS304 | STS304L |
| ISO | Grade 304 / related ISO designation depending product standard | Grade 304L / related ISO designation depending product standard |
| India – common market | SS304 / AISI 304 / A182 F304 | SS304L / AISI 304L / A182 F304L |
| BS / UK | 304 / 1.4301 | 304L / 1.4307 |
| GOST/Russian systems | 08Х18Н10 family, depending product specification | 03Х18Н11 family, depending product specification |
The chromium content provides a passive oxide layer that gives F304/F304L good general corrosion resistance.
F304L is particularly suitable for welded applications because of its low carbon content.
Austenitic stainless steels provide good toughness over a broad temperature range when properly specified.
F304/F304L can be machined, formed and fabricated using appropriate techniques.
304/304L stainless steel is one of the most widely used stainless steel families in industrial applications.
Properly selected and installed F304/F304L flange connections can provide reliable long-term service.
At Ferro Fittings and Alloys, we ensure that all raw materials for our Stainless Steel 304 and 304L flanges are sourced from certified suppliers. Each batch undergoes rigorous inspection to verify compliance with ASTM A240 and ASTM A182 standards. This includes Positive Material Identification (PMI) testing to confirm material grades, ensuring that only the highest quality materials are used in our manufacturing process.
Our flanges are fabricated using advanced techniques such as forging and machining to achieve precise dimensions. Typical dimensions for Stainless Steel 304 and 304L flanges range from 1/2” to 24” in nominal pipe size, with pressure ratings from 150 to 2500 lbs. We adhere to ASME B16.5 and B16.47 standards during the fabrication process to ensure dimensional accuracy and performance reliability. Contact us for a quick quote on your specific flange requirements.
| Process | Temperature (°C) | Medium | Purpose |
|---|---|---|---|
| Solution Annealing | 1050 - 1100 | Air | To enhance corrosion resistance |
| Stress Relieving | 600 - 800 | Air | To reduce residual stresses |
Quality is paramount at Ferro Fittings and Alloys. Our Stainless Steel 304 and 304L flanges undergo extensive testing, including Hydrostatic testing, Hardness testing, and Charpy Impact tests, complying with EN 10204 3.1 and 3.2 certification standards. We provide Material Test Certificates (MTC) for every order, ensuring transparency and trust. With a global export footprint covering over 50 countries, we are your reliable partner for quality flanges. Request a free sample MTC today!
| Grade | Size / Dimension | Price (USD/Kg) | Price (INR/Kg) |
|---|---|---|---|
| SS 304 | 1/2" (15mm) | $4.50 | ₹370 |
| SS 304L | 1" (25mm) | $4.80 | ₹395 |
| SS 304 | 2" (50mm) | $5.20 | ₹430 |
| SS 304L | 3" (75mm) | $6.00 | ₹495 |
Note: Prices are indicative and subject to change based on quantity, raw material costs, and delivery terms. Contact us for the latest quotation.
Our multiple locations and strong logistics network make it easy for customers across India to source Stainless Steel 304 304L Flanges Exporter in Saudi Arabia from Ferro Fittings and Alloys. Contact us for prompt delivery at competitive prices.
Ferro Fittings and Alloys exports Stainless Steel 304 304L Flanges Exporter in Saudi Arabia to 50+ countries worldwide. We handle all export documentation, sea-worthy packaging, and logistics to ensure on-time, damage-free delivery anywhere in the world.
